Perform Transactions

Background

Legal asset ownership is typically conferred upon an entity by a document termed as a Title, or Title Deed. The party who holds this ownership is known as the Owner.

In the physical world, an original print of the physical Title can be held by various parties at points in its' life cycle. This is termed Possession, or Holdership. There are no restrictions on who can have possession of a title, subject to the physical constraints of an existing holder passing holdership to the next holder.

A Title that can have its' Owner changed after issuance, is known as a Negotiable Title. Conversely, a Title that has a fixed Owner for the rest of its' lifetime is known as a Non-negotiable Title.

In the case where a Negotiable Title has its' Owner changed, this procedure is termed Endorsement. This change of ownership is only allowed by its' current Owner.

TrustVC Contribution

As previously documented under the Token Registry section, we can represent control of a TrustVC document uniquely and singularly by registering its' hash with the Issuer's token registry. This hash is also known as a Token ID. This control will also be referred to as the Token.

However, as the ERC721 standard only specifies a single mode of ownership, it cannot represent the duality of physical possession and legal ownership.

In order to properly represent this, we introduce the Title Escrow smart contract. This smart contract will hold the Token and subject it to logical rules that we have derived from the existing physical workflow. Since the smart contract holds the Token in escrow, the smart contract, and only the smart contract can allow any changes in the Token status.

Title Escrow

The Title Escrow is an immutable contract except for its fields. It has two notable fields:

The Owner
The Holder

Owner

Every instance of the Title Escrow consists of the Owner field that changes when a transfer takes place.

There are two scenarios in which this can occur.

Firstly, if Owner and Holder are the same party - he can directly effect a transfer of the Token. This is termed Immediate Endorsement.

Secondly, if Owner and Holder are different parties - this is a novel scenario not possible in the current physical model, as physical Endorsement requires the Title be physically signed upon by the Owner and thus making him also the holder.

In this scenario, we allow the Owner to prepare a Remote Endorsement, but for it to take effect the holder has to subsequently execute it.

Holder

The Holder field is much simpler, and similarly to the physical world - an existing holder (and only the holder) can effect a change in Possession without further approval.

Return to Issuer

At the end of its' life cycle, a Title is returned back to the Issuer. This is effected by transferring the Token back to the Issuer.

The Title Escrow makes an allowance for this action to be performed by the Owner, only when he is also the holder. This action is termed returnToIssuer.

Manage Assets

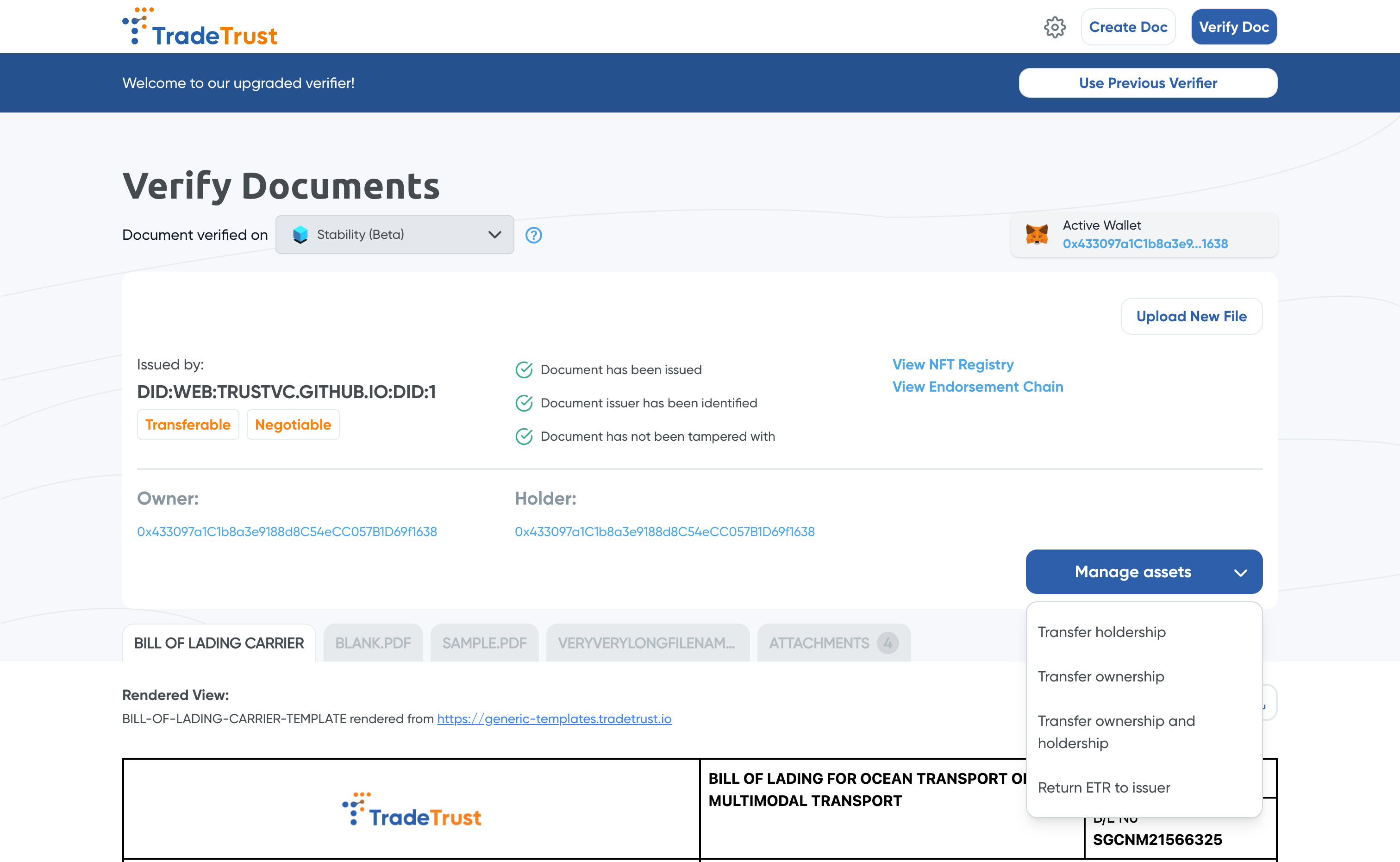

User interface of how EBL is transferred/endorsed/returned using Manage Assets. (Note that this only appears for Transferable Record type of documents)

Manage Asset

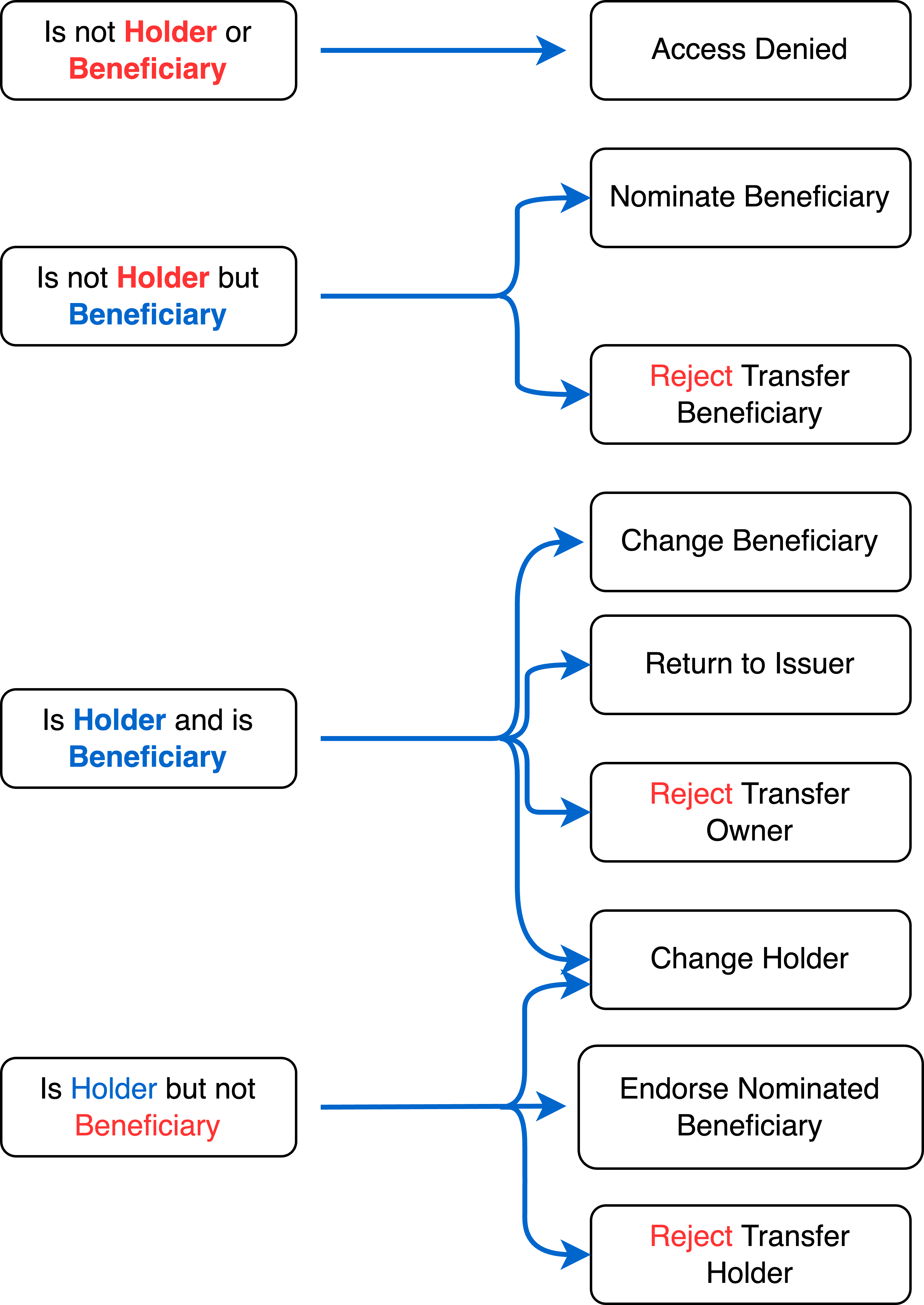

Summary Table of Actions

This document includes a Stateflow diagram illustrating the available actions that can be performed on a token ID by the holder and owner on the blockchain. The Title Escrow contract manages and represents token ownership between a beneficiary and a holder. During minting, the Token Registry creates and assigns a Title Escrow as the owner of the token. Actual owners interact with the Title Escrow contract to execute ownership-related operations.

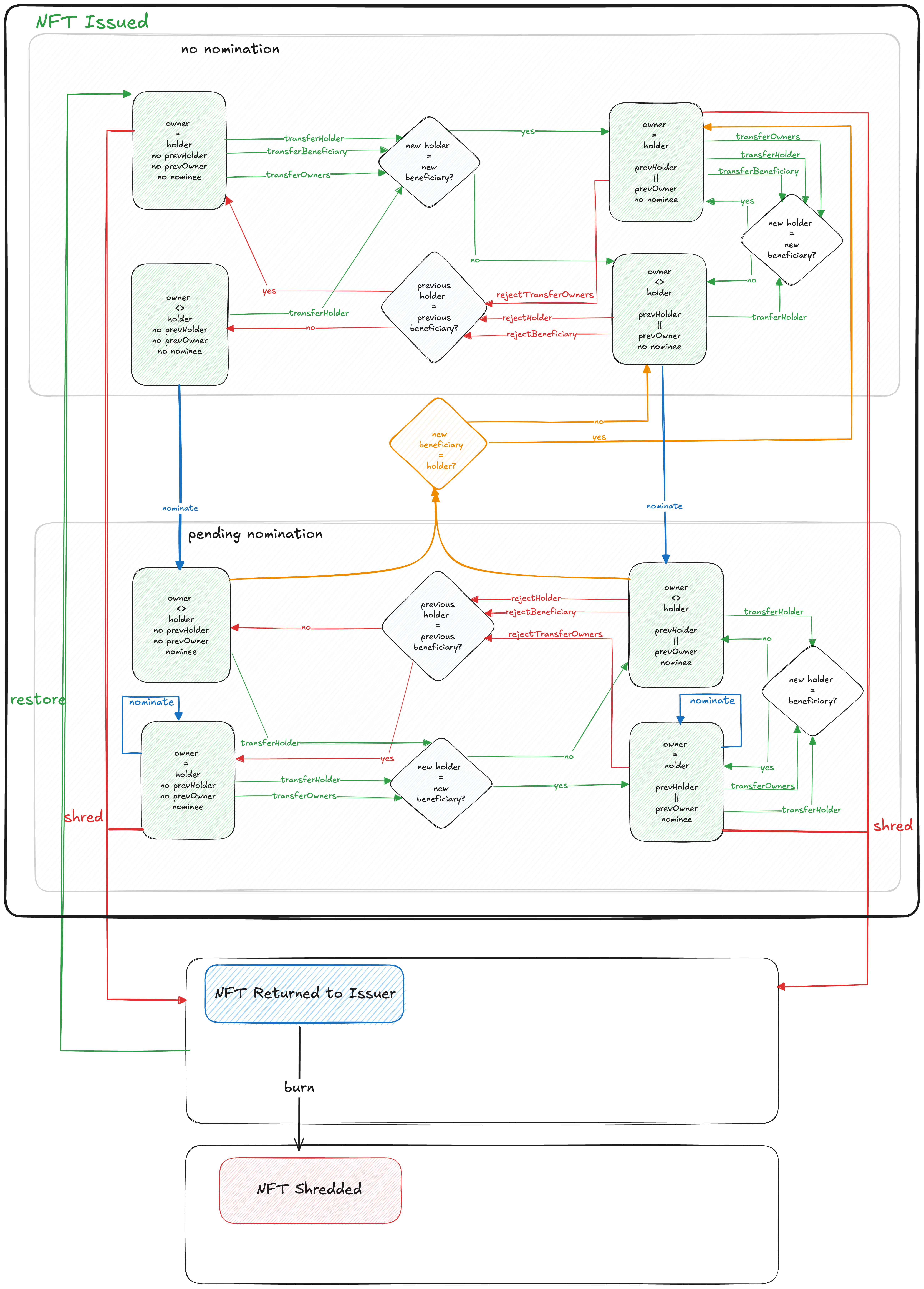

Below is the Stateflow diagram depicting all the functions of the Title Escrow smart contract.

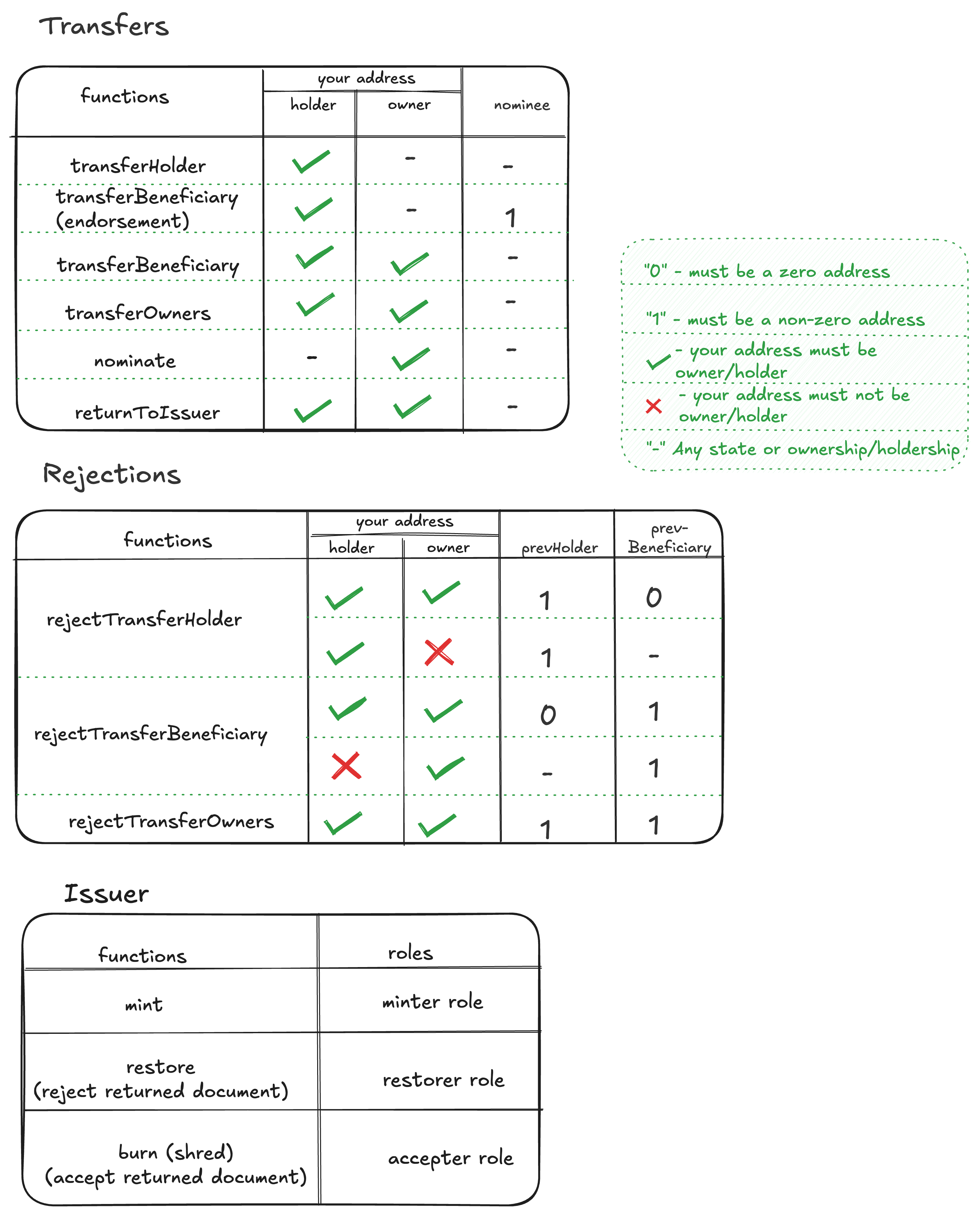

Below are the available transactions based on your role (Owner/Holder) and the current state of the token, whether as a Nominee, Previous Holder, or Beneficiary. You can successfully execute transactions depending on the provided state and role conditions.

Executing Transactions on Title Escrow

To execute these transactions, you can use either the Command Line Interface (CLI) or interact with the smart contract programmatically through code. Below, we provide step-by-step instructions on both methods, starting with the installation process.

1) Using Code

Installation

npm install --save  @trustvc/trustvc

Usage

To use the package, you will need to provide your own Web3 provider or signer (if you are writing to the blockchain). This package exposes the Typechain (Ethers) bindings for the contracts.

TradeTrustToken

The TradeTrustToken is a Soulbound Token (SBT) tied to the Title Escrow. The SBT implementation is loosely based on OpenZeppelin's implementation of the ERC721 standard. An SBT is used in this case because the token, while can be transferred to the registry, is largely restricted to its designated Title Escrow contracts. See issue #108 for more details.

Connect to existing token registry

import { v5Contracts } from "@trustvc/trustvc";

const connectedRegistry = v5Contracts.TradeTrustToken__factory.connect(tokenRegistryAddress, signer);

Issuing a Document

await connectedRegistry.mint(beneficiaryAddress, holderAddress, tokenId, remarks);

Restoring a Document

await connectedRegistry.restore(tokenId, remarks);
// Guard - document should be already returned to issuer

Accept/Burn a Document

await connectedRegistry.burn(tokenId, remarks);
// Guard - document should be already returned to issuer

Title Escrow

The Title Escrow contract is used to manage and represent the ownership of a token between a beneficiary and holder. During minting, the Token Registry will create and assign a Title Escrow as the owner of that token. The actual owners will use the Title Escrow contract to perform their ownership operations.

important

A new remark field has been introduced for all contract operations.

The remark field is optional and can be left empty by providing an empty string "0x". Please note that any value in the remark field is limited to 120 characters, and encryption is recommended.

Please refer to the sample encryption implementation .

Connect to Title Escrow

import { v5Contracts } from "@trustvc/trustvc";

const connectedEscrow = v5Contracts.TitleEscrow__factory.connect(existingTitleEscrowAddress, signer);

Transfer of Beneficiary/Holder

Transferring of beneficiary and holder within the Title Escrow relies on the following methods:

await connectedTitleEscrow.transferBeneficiary(nominee, remark);
// Guard - nominee ≠ zero_address & owner ≠ newOwner
await connectedTitleEscrow.transferHolder(newHolder, remark);
// Guard - holder ≠ newHolder
await connectedTitleEscrow.transferOwners(nominee, newHolder, remark);
// Guard - holder ≠ newHolder & beneficiary  &ne; newBeneficiary
await connectedTitleEscrow.nominate(nominee, remark);
// Guard - beneficiary ≠ nominee

note

The transferBeneficiary transfers only the beneficiary and transferHolder transfers only the holder. To transfer both beneficiary and holder in a single transaction, use transferOwners.

In the event where the holder is different from the beneficiary, the transfer of beneficiary will require a nomination done through the nominate method.

Reject Transfers of Beneficiary/Holder

Rejection of transfers for any wrongful transactions.

await connectedTitleEscrow.rejectTransferBeneficiary(_remark);
// Guard - prevHolder  ≠ zero_address
await connectedTitleEscrow.rejectTransferHolder(_remark);
// Guard - prevBeneficiary  ≠ zero_address
await connectedTitleEscrow.rejectTransferOwners(_remark);
// Guard - prevOwner  ≠ zero_address & prevHolder  ≠  zero_address

::: important Rejection must occur as the very next action after being appointed as beneficiary and/or holder. If any transactions occur by the new appointee, it will be considered as an implicit acceptance of appointment.

There are separate methods to reject a beneficiary (rejectTransferBeneficiary) and a holder (rejectTransferHolder). However, if you are both, you must use rejectTransferOwners, as the other two methods will not work in this case. :::

Return ETR Document to Issuer

Use the returnToIssuer method in the Title Escrow.

await connectedTitleEscrow.returnToIssuer(remark);
// Guard - holder = owner

returnToIssuer can occur only when the beneficiary and holder are same.

2) Using CLI

Installation

⚠️ DISCLAIMER

The TrustVC CLI helps developers prototype and test how document issuance and verification work before integrating the TrustVC core into their own systems.

It should not be used for production issuance or live document management, as it lacks security, scalability, and operational controls required for real-world environments.

Binary

To install the binary, simply download the binary from the CLI release page for your OS.

We are aware that the size of the binaries must be reduced and we have tracked the issue in Github. We hope to find a solution in a near future and any help is welcomed.

NPM

For Linux or MacOS users, if you have npm installed on your machine, you may install the CLI using the following command:

npm install -g @trustvc/trustvc-cli

The above command will install the TrustVC CLI to your machine. You will need to have node.js installed to be able to run the command.

You can also opt to use npx:

npx @trustvc/trustvc-cli <arguments>

Now we will see performing the same transactions via the command line.

Note: All TrustVC CLI commands use an interactive prompt system. The CLI will automatically extract information from your wrapped document and guide you through the required inputs.

Mint document to token registry

Mint a hash to a token registry deployed on the blockchain. The CLI automatically extracts the token registry address, token ID, and network from the wrapped document.

trustvc token-registry mint
